Spinner Polished, Piper - McCauley 2-Blade w/ Cuffs & Bulkheads P/N 67790-00 ++Click here to purchase or contact the seller of this item on eBay |
|
|
| Current Price: 649.00 USD |

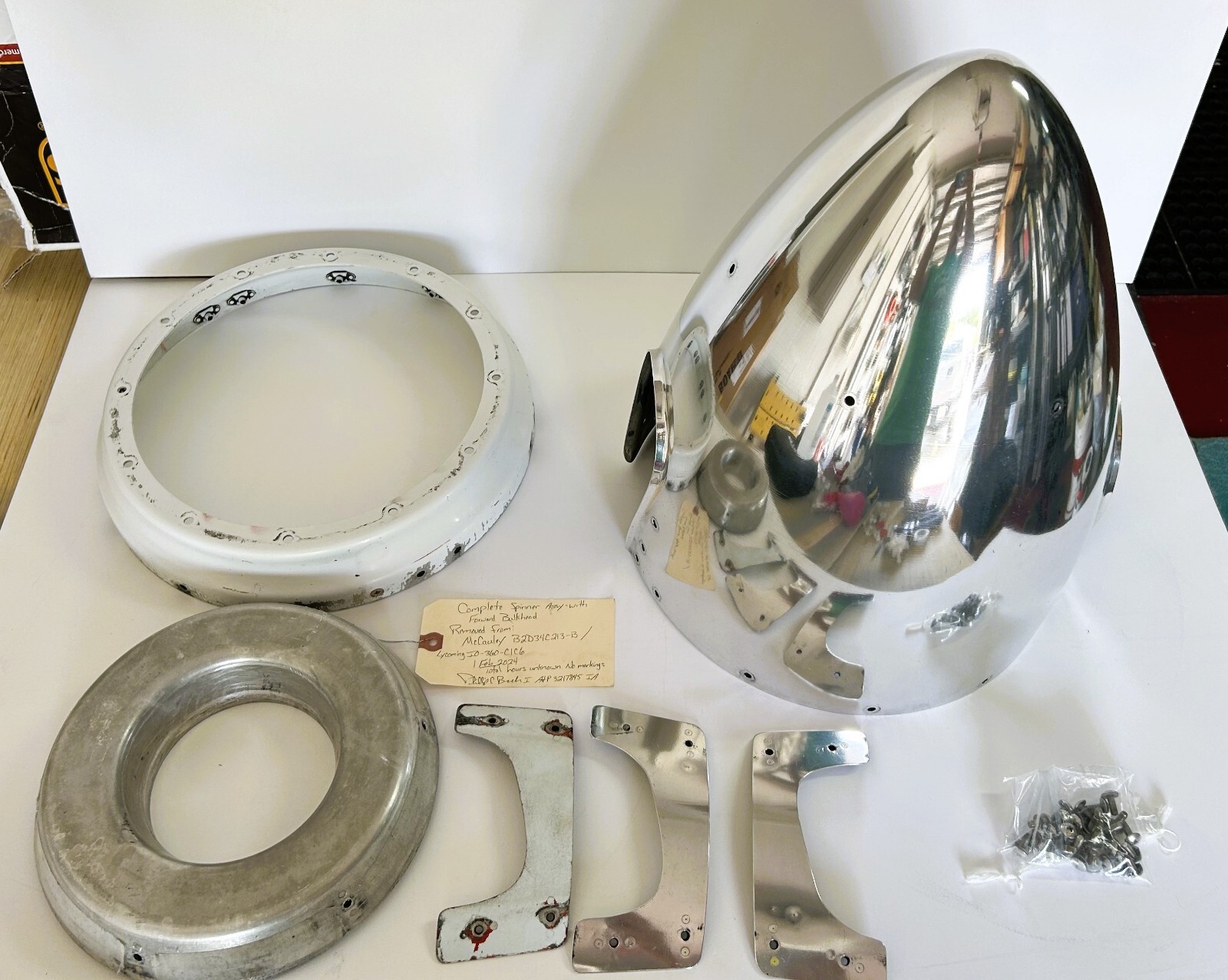

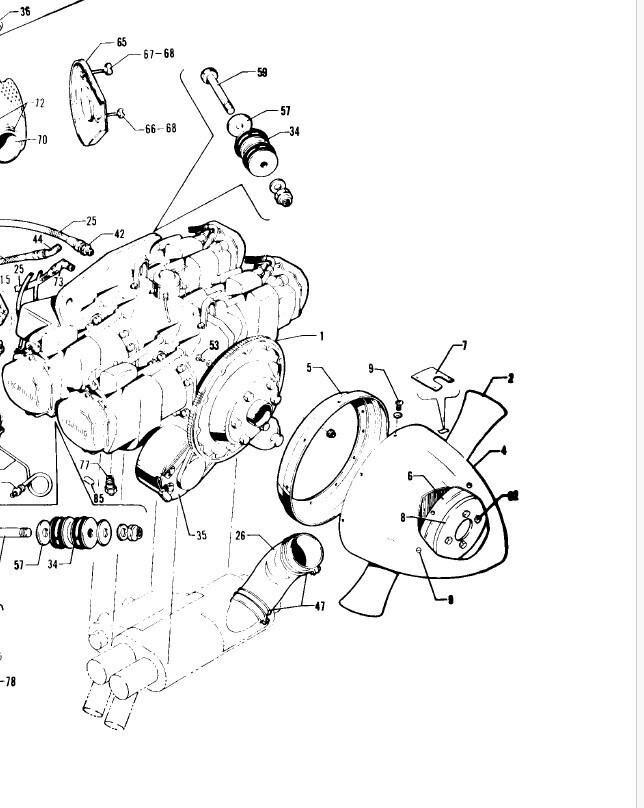

Polished spinner dome, cuffs, and forward and rear bulkheads fit for McCauley prop/hubs on PA-28 models and several others Piper models. The manufacturer part numbers (see parts manual excerpt in photos) included:
- 67790-00 - spinner dome, polished

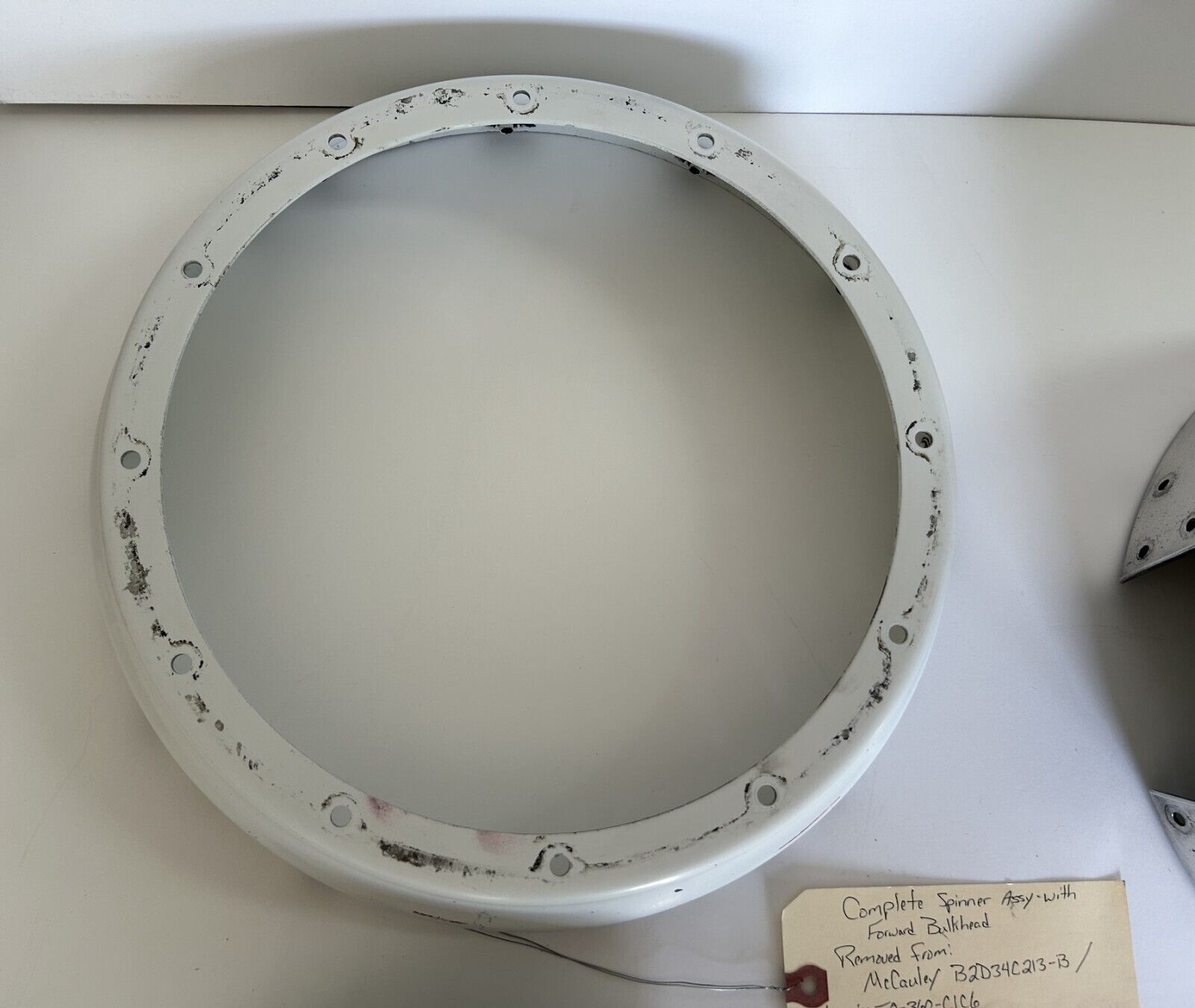

- 67791-00 - aft bulkhead spinner/spinner attach plate

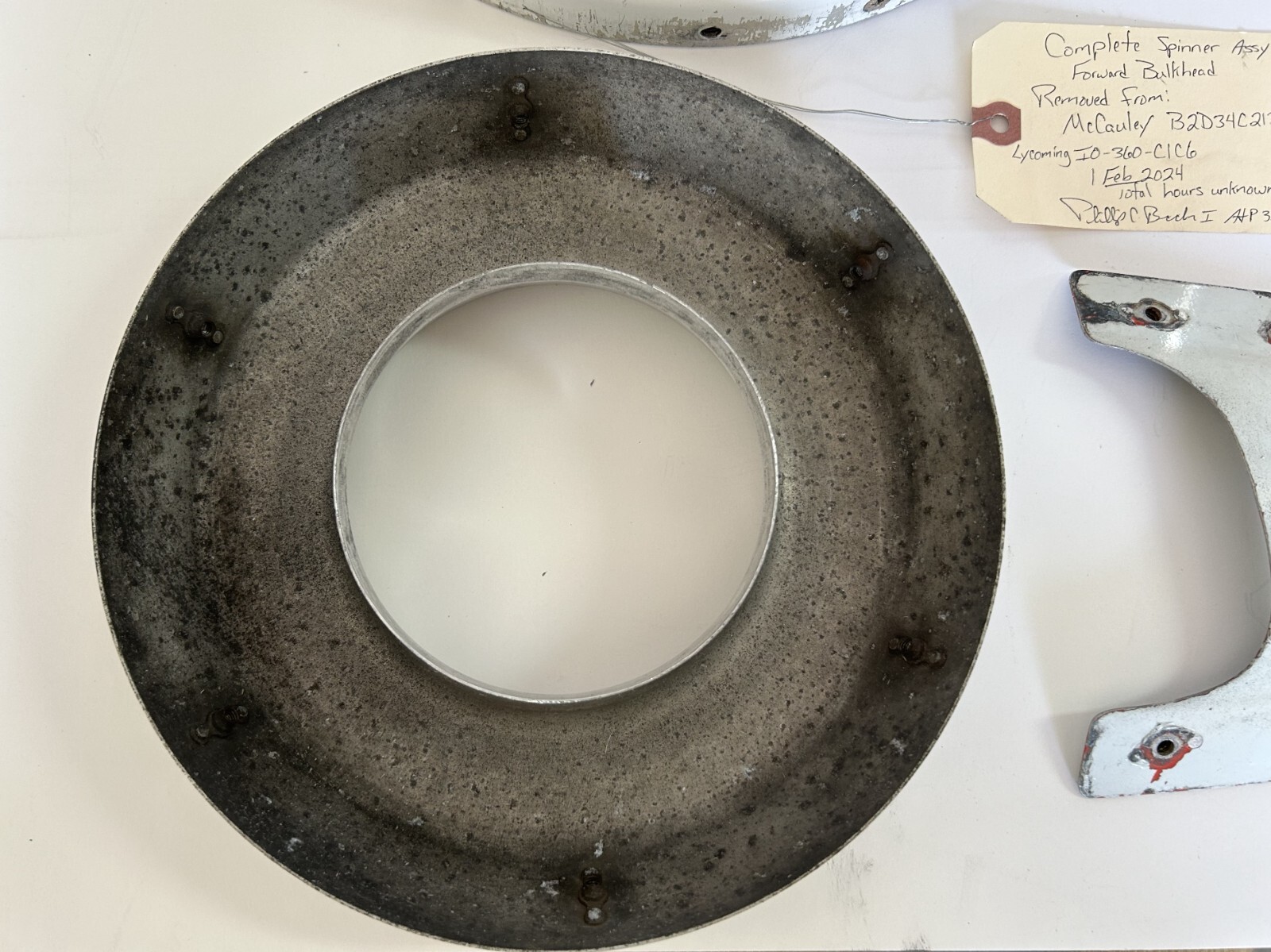

- 35827-02- forward bulkhead (McCauley hub sized)
- 67794-00 - (3) side plate cuffs
- 415 379 - spinner screws (misc. most good condition/serviceable).
Used, as removed, polished 2-blade spinner, side cuffs, and forward/aft bulkhead. A&P IA's tag/notation included - see photo.

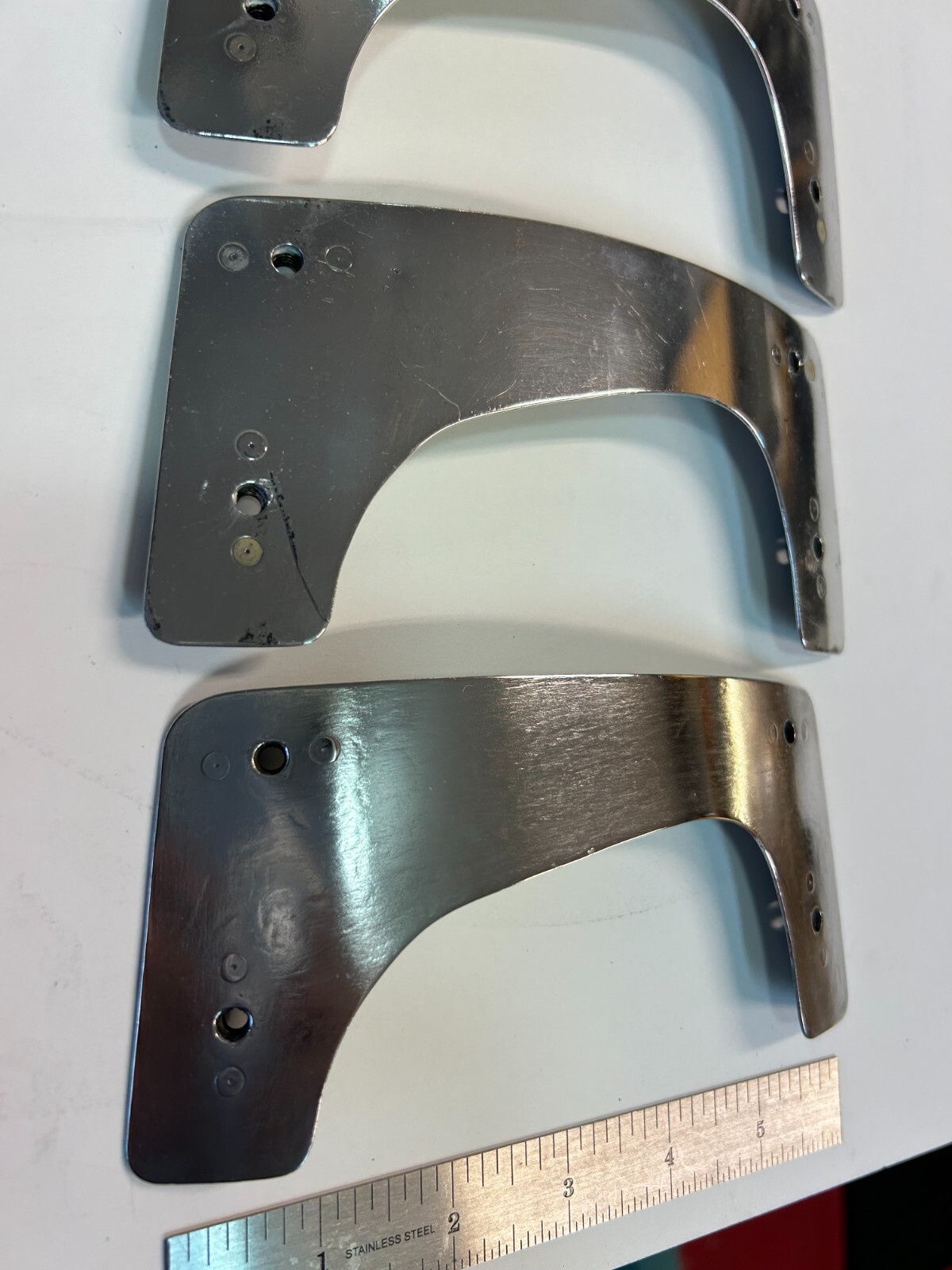

Note a crack on one side plate cuff in photos. Including this as an extra in case it is useful to purchaser but it would need to be welded. Normal wear imperfections - see photos.
Removed from a 1979 PA-28RT-201/Lycoming IO-360 C1C6 with a McCauley 2-blade prop and McCauley prop hub.
May fit on other 2-bladed prop/hub combinations. (Hartzell 2-blade prop applications use a different forward bulkhead to fit the larger Hartzell hub so the spinner dome and cuffs would fit if different forward bulkhead acquired separately - see parts manual excerpt in photos).
|
|
|
|
|
|
|
|
|
|
|
