Aircraft Exhaust, Beech DebonairClick here to purchase or contact the seller of this item on eBay |
|
|
| Current Price: 985.00 USD |
Beech Debonair exhaust system removed from 35-33 and IO-470-J engine. Full exhaust system for sale as removed. No gaskets.
Risers were drilled for EGT probes.
Removed for performance exhaust installation and engine overhaul.

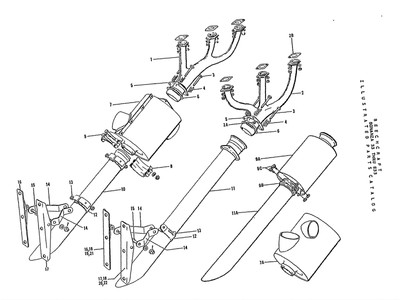

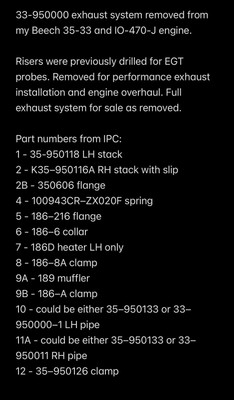

Part numbers from IPC:
33-950000 exhaust system
1 - 35-950118 LH stack
2 - K35–950116A RH stack with slip
2B - 350606 flange
4 - 100943CR–ZX020F spring
5 - 186–216 flange
6 - 186–6 collar
7 - 186D heater LH only
8 - 186–8A clamp
9A - 189 muffler
9B - 186–A clamp
10 - part number could be 35–950133 or 33–950000–1 LH pipe
11A - part number could be 35–950133 or 33–950011 RH pipe
12 - 35–950126 clamp
Box is:
22.5 lbs
31x26x7
|
|
|
|
|
|
|
